From automated fabric cutters to stone bridge saws, our 650nm red
and 520nm green line laser modules deliver crisp, uniform alignment
lines that reduce setup time and improve cut accuracy — even in
bright workshop environments.

Laser Line Modules Built
for Industrial Cutting & Positioning

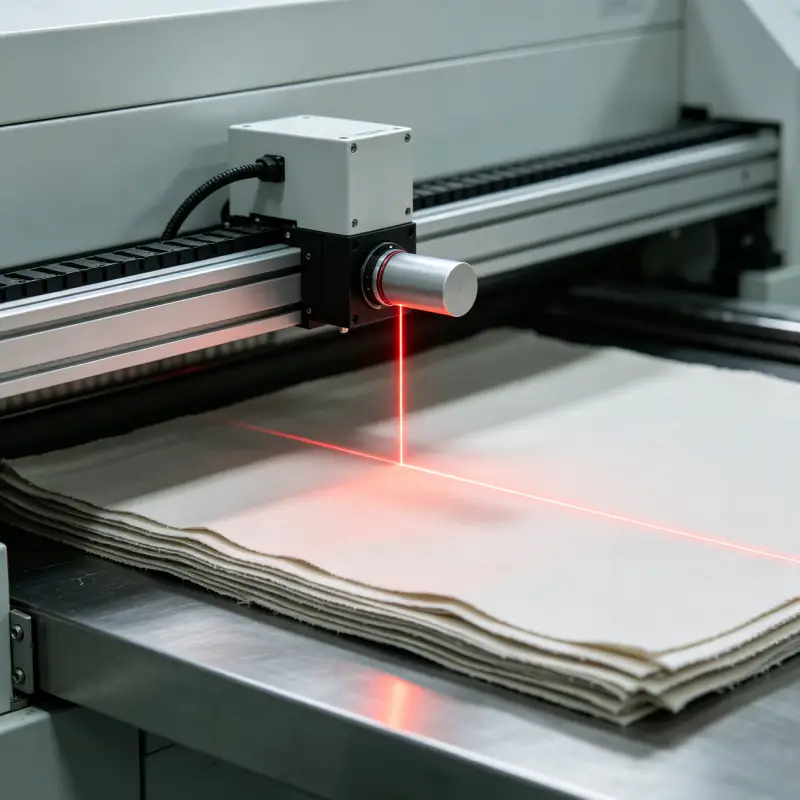

Fabric & Textile Cutting Machines

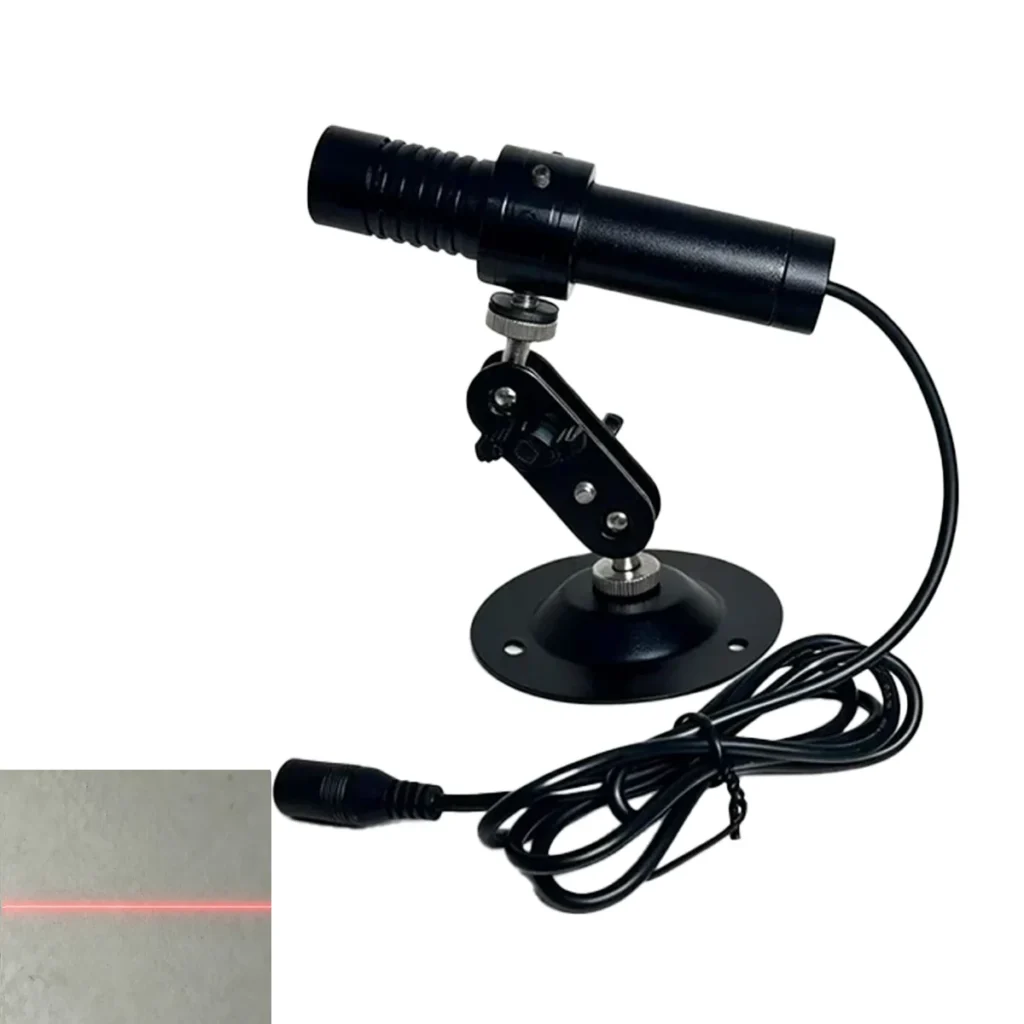

Recommended Models：[16mm Red Laser Module 650nm]

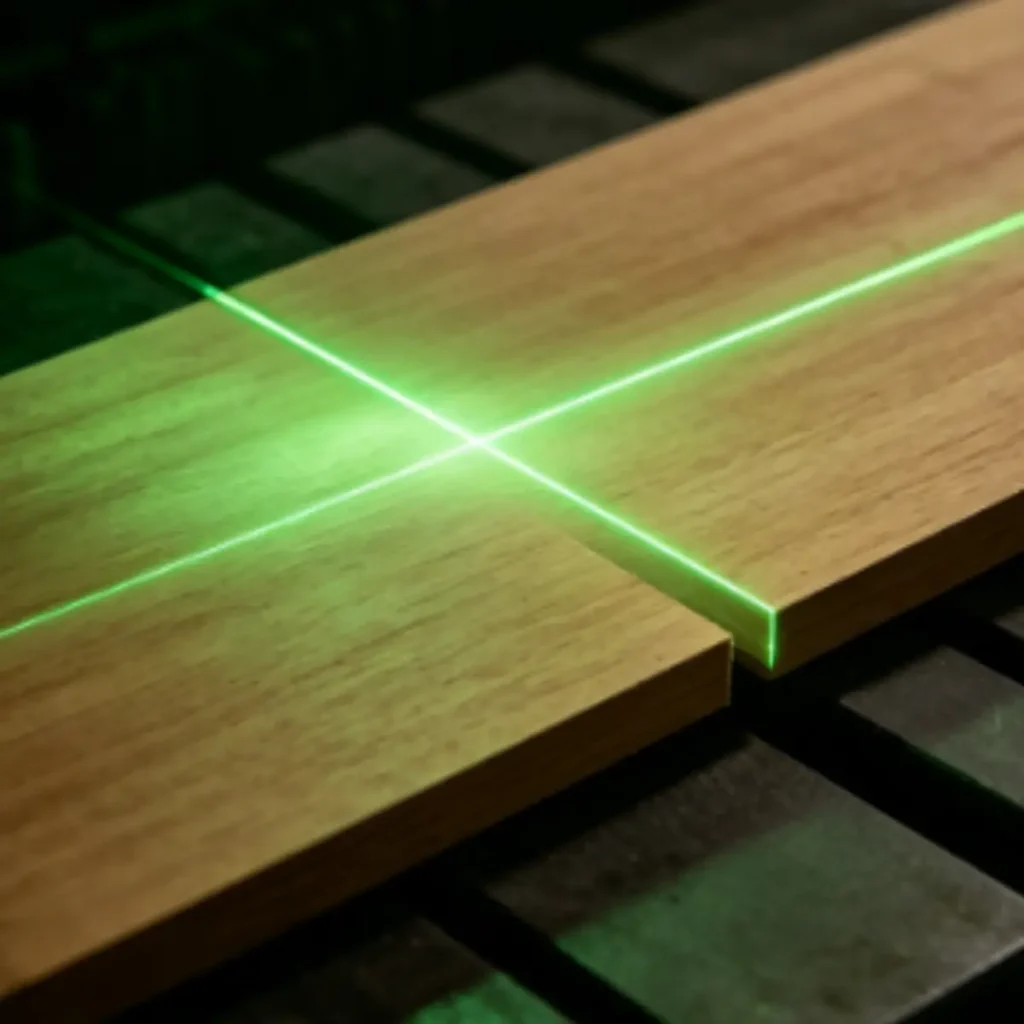

Woodworking & Furniture Manufacturing

Pencil marks and tape measures slow down production and leave room for human error. On dusty workshop floors, traditional red lasers can be hard to see against light-colored wood？
520nm green line lasers are up to 4x more visible than red at the same power, making them ideal for bright woodworking environments. The integrated glass column lens delivers a straight, uniform line that aligns perfectly with the blade path. Adjustable focus lets you fine-tune line width for different material thicknesses.

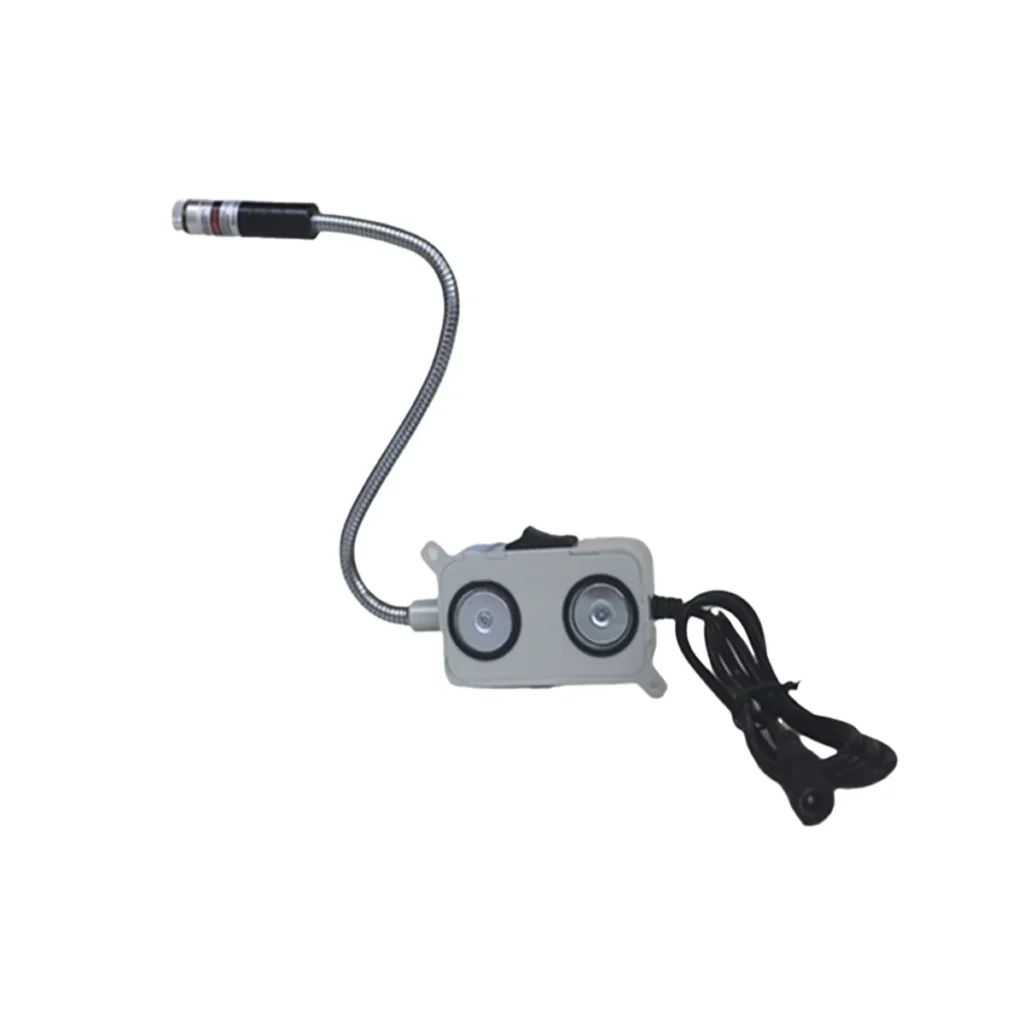

Recommended Models: [16mm Green Laser Module 520nm]

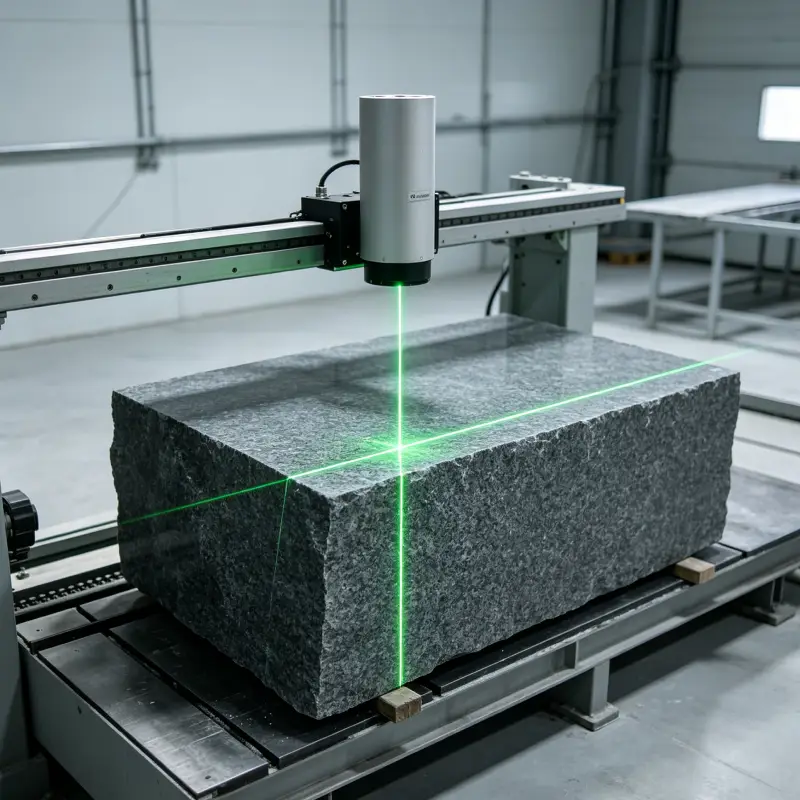

Stone & Tile Cutting

Stone slabs are heavy and expensive — a misaligned cut wastes material and costs thousands. Wet cutting environments and bright factory lighting make standard laser lines difficult to see. Stone dust can obscure weaker laser outputs？
Stone slabs are heavy and expensive — a misaligned cut wastes material and costs thousands. Wet cutting environments and bright factory lighting make standard laser lines difficult to see. Stone dust can obscure weaker laser outputs.

Recommended Models: [22mm Green Laser Module 520nm]

FAQ

Q1: Can this laser module adjust focus?

A: Yes. It adopts manual threaded focus‑adjustable lens. Rotate the lens to get fine tiny spot or large flood spot.

Q2: Can I adjust the brightness of this laser?

A: Yes. Two dimming options: built‑in manual knob for local brightness adjustment, or connect an extra dimming wire for 3‑5V analog voltage dimming. No flicker even at minimum brightness, stable output for long‑time working.

Q3: Red laser or green laser, which one should I choose?

A: Red laser (650nm): good visibility indoors, cost‑effective, widely used for wood & stone cutting machinery positioning.

Green laser (520nm): higher human‑eye sensitivity, better performance for bright‑light / workshop ambient light conditions. You can pick according to your working environment.

Q4: Is this laser suitable for cutting‑machine installation under workshop vibration?

A: Aluminum housing provides stable mechanical performance for machine‑mount installation for wood and stone cutting equipment.

Q5: What power supply do I need for this laser module?

A: Working voltage 3‑5V DC. Stable regulated DC power source is required. It supports both manual‑knob local adjustment and external 3‑5V analog signal dimming via extra dimming wire for system integration.

Q6: What applications is this laser used for?

A: Mainly for wood cutting machine, stone cutting machine and other mechanical equipment positioning. Support B2B bulk order and retail order. OEM & ODM available.

Q7: What is the service life and warranty condition?

A: With constant‑current driving circuit design, typical service life can reach over 8000 hours under proper working condition. We provide standard factory warranty, please contact us for detailed warranty terms.

Q8: Can I mount this laser onto my existing cutting machine?

A: Yes. Standard cylindrical housing, easy for fixture/clamp mounting. If you need special dimension or custom wire length, we support OEM modification for your equipment integration.

OEM / Custom Laser Module

Need a Custom Laser Module Solution?

Every cutting and positioning application has unique requirements. Our OEM engineering team can customize:

Wavelength: 405nm‑940nm optional
Output Power: 1 mW
Optics: Line, dot, cross‑line
Housing: 16mm, 22mm, or custom dimensions
Electronics: TTL modulation, analog modulation, temperature compensation
Connectors & Cables: Custom lengths, M8/M12 connectors, flying leads
Private Labeling: Custom branding and packaging
Minimum Order: 100 units for custom configurations
Prototype Timeline: 15‑25 business days
Mass Production: 30‑45 business days after prototype approval

Ready to Improve Cut Accuracy on Your Machine?

Tell us about your application — our engineers will respond within 24 hours with a tailored laser module recommendation, including wavelength, power, optics, and mounting options.
