650nm Red Laser Positioning Module | Industrial Laser Alignment Module for CNC Cutting & Machine Positioning
Product Overview
The 650nm Red Laser Positioning Module is a professional Industrial Laser Positioning Module designed for precision alignment, cutting guidance, and visual positioning applications. Explore our industrial Laser Alignment Solutions for CNC machines and automated equipment.
Featuring a high-quality 650nm red laser diode, this industrial laser module provides a stable 1mW Class 2 continuous-wave (CW) laser output, projecting a clear and accurate reference laser line for machine alignment and positioning.
The module is widely used in fabric cutting machines, woodworking equipment, stone processing machinery, CNC systems, machining centers, and industrial automation equipment requiring reliable visual positioning solutions.
Designed with a durable 22mm industrial-grade housing, this Red Laser Module provides excellent mechanical stability and easy equipment integration. The optimized optical structure ensures a sharp, stable, and consistent laser projection during long-term industrial operation.
The module features adjustable brightness control, allowing users to optimize laser visibility under different working environments. Equipped with a 360° adjustable mounting bracket, the laser projection direction can be easily adjusted according to machine layout and installation requirements.
STSZ Laser provides professional OEM and ODM customization services, including wavelength, output power, beam pattern, housing design, cable length, connector type, mounting solutions, and customized Industrial Laser Alignment Module solutions.
Product Core Advantages
Stable 650nm Red Laser Source
The module adopts a high-quality 650nm red laser diode combined with precision optical alignment technology to deliver a stable, sharp, and reliable laser beam.
The red laser wavelength provides excellent performance for industrial positioning applications, especially in environments where stable visual reference lines are required.
Suitable applications include:
- Industrial equipment alignment
- Machine positioning
- Cutting guidance
- CNC machine calibration
- Production line alignment
For OEM equipment manufacturers requiring customized laser sources, STSZ Laser also supplies Industrial Semiconductor Laser Diodes with different wavelengths and output power options.
Product Features
Industrial 22mm Housing Design
The 650nm Red Laser Positioning Module adopts a robust industrial housing structure designed specifically for machine integration.
Advantages:
- Strong mechanical stability
- Excellent vibration resistance
- Suitable for factory environments
- Easy equipment installation
- Reliable long-term continuous operation
Adjustable Brightness Red Laser Module
The built-in brightness adjustment function allows users to adjust laser intensity according to different working conditions.
- Improved laser visibility
- Optimized positioning accuracy
- Suitable for different lighting environments
- Flexible industrial application adjustment
For applications requiring adjustable optical focus, see our 520nm Adjustable Focus Green Laser Module.
360° Adjustable Mounting Bracket

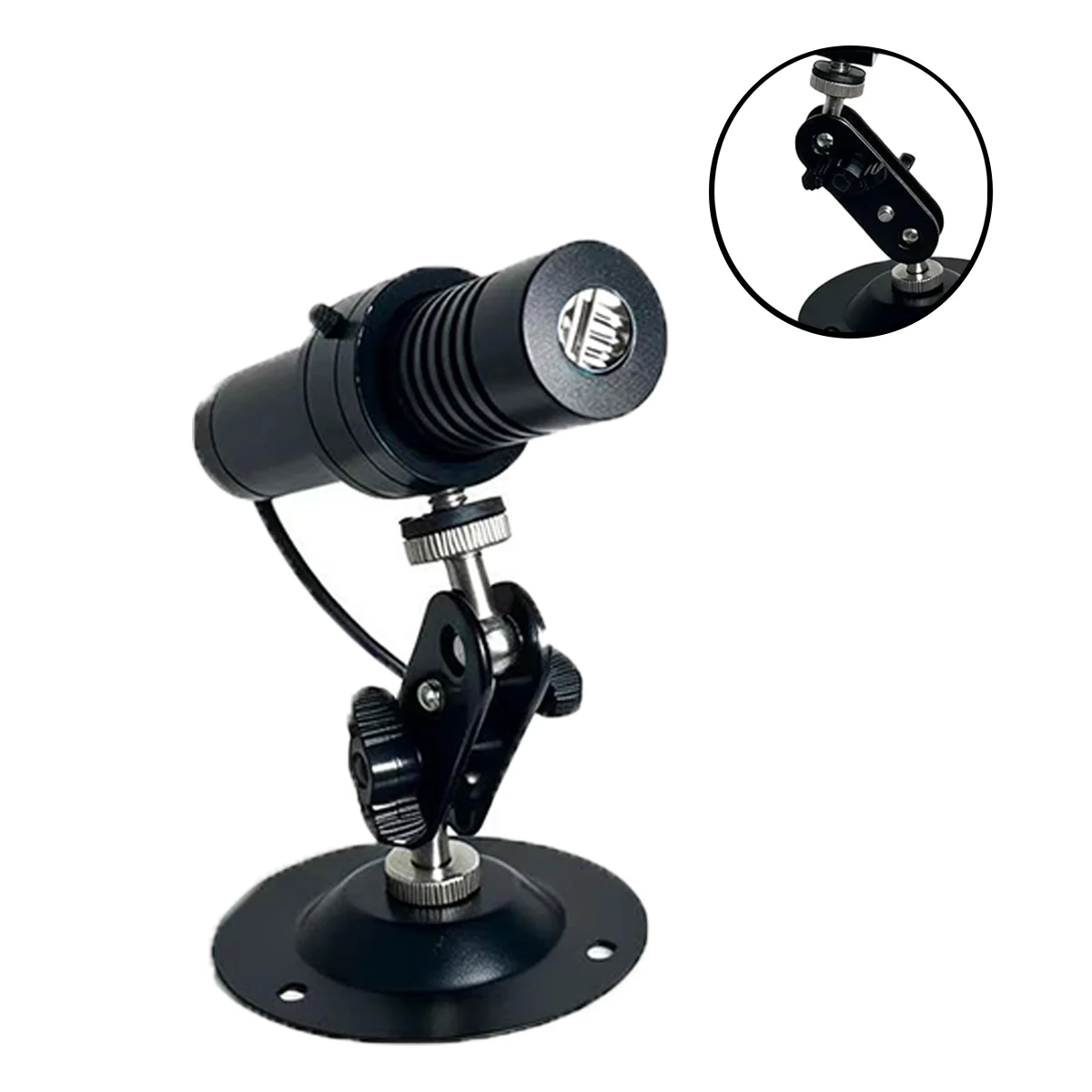

The included universal mounting bracket provides flexible installation for different industrial equipment.
For magnetic installation requirements, our 650nm Red Laser Module with Dual Magnetic Mount provides a convenient mounting solution.
Bracket Features:
- Full 360° angle adjustment
- Easy laser direction positioning
- Secure mechanical locking
- Convenient machine integration
For applications requiring adjustable optical focus, see our Adjustable Focus Laser Module.
Three Beam Pattern Options
The 650nm Red Laser Positioning Module supports three projection patterns to meet different industrial positioning requirements:
- Line Laser
- Cross Laser
- Dot Laser
Line Laser Module
The Line Laser Module projects a straight reference laser line for cutting guidance and workpiece alignment.
Applications:
- Fabric cutting machines
- Textile processing equipment
- Woodworking saws
- Sliding table saws
- Material positioning systems
- Production line marking
Advantages:
- Clear cutting reference line
- Fast visual positioning
- Improved cutting consistency
- Suitable for long-distance alignment
Cross Line Laser Module
The Cross Laser Module generates horizontal and vertical reference lines for precision positioning and equipment calibration.
Applications:
- CNC machine alignment
- Machine installation
- Industrial equipment calibration
- Fixture positioning
- Assembly line alignment
Advantages:
- Accurate center positioning reference
- Improved equipment installation accuracy
- Simplified machine adjustment
- Suitable for precision alignment applications
Dot Laser Module
The Dot Laser Module produces a concentrated laser spot for accurate point positioning and marking.
Applications:
- Precision positioning
- Industrial marking
- Equipment calibration
- Fixture assembly
- Measurement reference points
Advantages:
- Sharp laser spot
- Easy target recognition
- Accurate point positioning

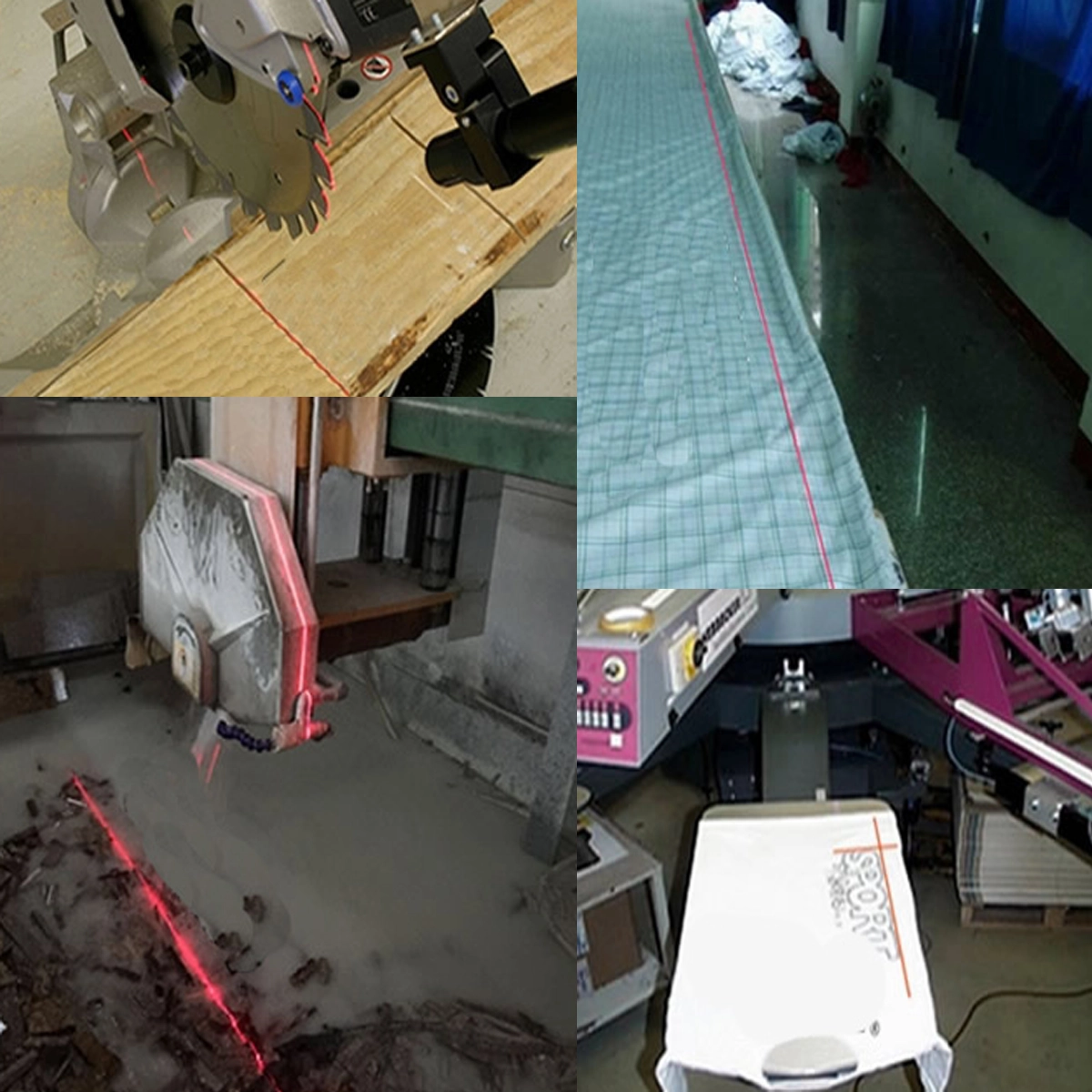

Industrial Applications
The 650nm Red Laser Positioning Module works as a professional Red Laser Alignment System for industrial cutting, positioning, and machine alignment applications.
Fabric Cutting Laser Guide
Provides a clear visual reference line for:
- Garment cutting machines
- Textile cutting equipment
- Automatic fabric cutters
- Clothing production systems
Benefits:
- Improved cutting accuracy
- Reduced material waste
- Increased production efficiency
Woodworking Laser Guide
Suitable for:
- Sliding table saws
- Table saws
- Circular saws
- Wood cutting machines
- Workshop processing equipment
The laser guide helps operators achieve accurate cutting alignment and improve machining efficiency.
Stone Cutting Laser Alignment
Suitable for:
- Marble cutting
- Granite processing
- Tile cutting machines
- Stone fabrication equipment
Provides a stable laser reference during stone processing operations.
CNC Machine Alignment Laser
Compatible with:
- CNC routers
- CNC cutting machines
- Machining centers
- Industrial automation production lines
Provides stable visual positioning during machine setup, calibration, and operation.
Why Choose This 650nm Red Laser Positioning Module?
✔ High-quality 650nm red laser source
✔ Professional Industrial Laser Positioning Module design
✔ Durable 22mm industrial housing structure
✔ Adjustable brightness control
✔ 360° adjustable mounting bracket
✔ Line / Cross / Dot beam options
✔ 1mW Class 2 safe laser output
✔ Stable Continuous Wave (CW) operation
✔ Ideal for CNC machine alignment and cutting guidance
✔ OEM & ODM customization available
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | 650nm Red Laser Positioning Module |
| Laser Color | Red |
| Wavelength | 650nm |
| Output Power | 1mW |
| Laser Class | Class 2 |
| Operating Mode | Continuous Wave (CW) |
| Beam Pattern | Line / Cross / Dot |

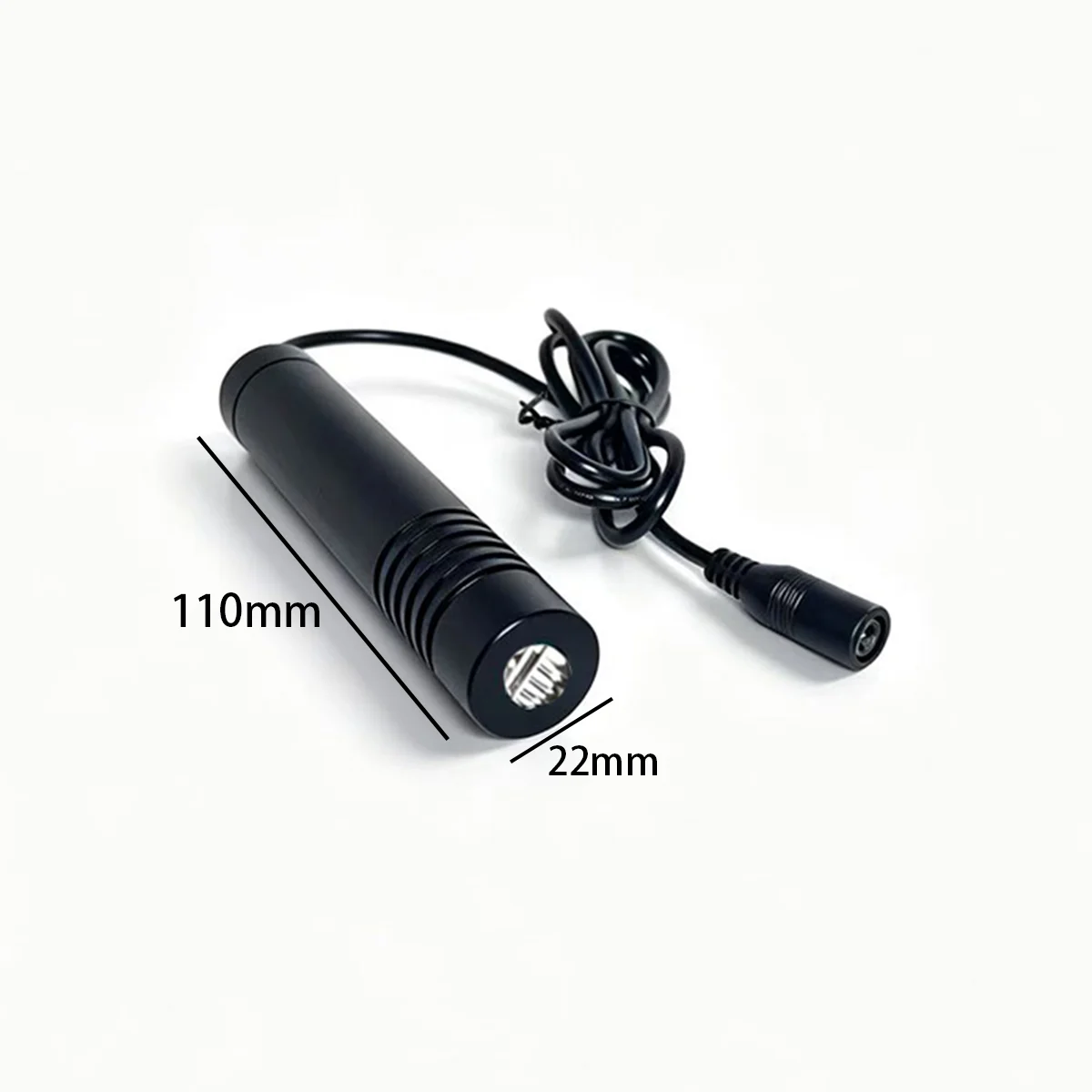

| Housing Diameter | 22mm |
| Operating Voltage | DC 5V |
| Focus Adjustment | Fixed Focus |
| Brightness Adjustment | Adjustable |
| Mounting Method | 360° Adjustable Bracket |
| Laser Source | 650nm Red Laser Diode |
| Applications | Cutting Alignment, CNC Positioning, Industrial Calibration |
OEM & ODM Customization Service
STSZ Laser provides professional OEM laser module manufacturing and customization solutions for industrial equipment manufacturers.
Customization options include:
- Laser wavelength
- Output power
- Beam pattern
- Beam angle
- Housing dimensions
- Cable length
- Connector type
- Mounting bracket
- Custom logo printing
- Packaging design
Our engineering team develops customized Industrial Laser Alignment Module solutions for automation companies and machine manufacturers.
Frequently Asked Questions
Q1: What is the 650nm Red Laser Positioning Module used for?
The 650nm Red Laser Positioning Module is designed for industrial cutting alignment, machine positioning, visual guidance, and equipment calibration.
It is widely used in:
- Fabric cutting machines
- Woodworking equipment
- Stone processing machinery
- CNC machines
- Industrial automation systems
Q2: What beam patterns are available?
The module supports:
- Line laser
- Cross laser
- Dot laser
Customers can select the suitable beam pattern according to application requirements.
Q3: Is the focus adjustable?
No. This model uses a fixed-focus optical design optimized for industrial positioning applications.
Q4: Can the laser brightness be adjusted?
Yes. The adjustable brightness function improves laser visibility under different lighting environments.
Q5: Does this module support OEM customization?
Yes. STSZ Laser supports customization of:
- Wavelength
- Output power
- Beam pattern
- Housing
- Cable length
- Connector type
- Mounting structure
Q6: Can it be used on CNC machines?
Yes. This CNC Machine Alignment Laser is suitable for CNC positioning, machine calibration, and industrial visual guidance.
Q7: Can the mounting angle be adjusted?
Yes. The universal mounting bracket supports 360° rotation adjustment.
Related Products
- 520nm Green Laser Positioning Module
- 650nm Adjustable Focus Red Laser Module
- 520nm Adjustable Focus Green Laser Module
- 650nm Red Laser Module with Dual Magnetic Mount
- Industrial Semiconductor Laser Diodes
STSZ Laser — Improve Industrial Alignment Accuracy
The 650nm Red Laser Positioning Module provides a reliable laser alignment solution for industrial cutting, CNC machine positioning, and equipment calibration.
With stable red laser output, adjustable brightness control, flexible mounting design, multiple beam options, and OEM customization capability, STSZ Laser helps equipment manufacturers improve production efficiency and achieve high-precision industrial positioning.
Contact STSZ Laser for product specifications, customized laser solutions, and bulk purchase quotations.
