520nm Green Laser Positioning Module | Industrial Laser Alignment Module for CNC Cutting & Machine Positioning
Product Overview
The 520nm Green Laser Positioning Module is a professional Industrial Laser Positioning Module designed for precision alignment, cutting guidance, and visual positioning applications. Explore our complete range of Laser Positioning Modules for different industrial alignment requirements.
Featuring a high-visibility 520nm green laser diode, this industrial laser module provides a stable 1mW Class 2 continuous-wave (CW) laser output. For OEM laser source requirements, STSZ Laser also provides Industrial Semiconductor Laser Diodes.
The module is widely used in fabric cutting machines, woodworking equipment, stone processing machinery, CNC systems, machining centers, and industrial automation equipment requiring reliable visual positioning.
Designed with a durable 22mm industrial-grade housing, this Green Laser Module offers improved mechanical strength and excellent integration capability for industrial equipment. The optimized optical structure ensures a sharp, stable, and consistent laser projection during long-term continuous operation.
The module features adjustable brightness control, allowing users to optimize laser visibility under different lighting environments. Equipped with a 360° adjustable mounting bracket, the laser projection direction can be easily adjusted according to machine layout and installation requirements.
STSZ Laser provides professional OEM and ODM customization services, including wavelength, output power, beam pattern, housing design, cable length, connector type, mounting solutions, and customized Industrial Laser Alignment Module solutions.
Product Core Advantages
High Visibility 520nm Green Laser Source
The module adopts a high-quality 520nm green laser diode combined with precision optical alignment technology to deliver a bright, sharp, and stable laser beam.
Compared with traditional red laser sources, green laser provides higher visibility and better recognition performance, making it suitable for demanding industrial applications:
- Industrial equipment alignment
- Machine positioning
- Cutting guidance
- CNC machine calibration
- Production line alignment
For OEM equipment manufacturers requiring customized laser sources, STSZ Laser also supplies Industrial Semiconductor Laser Diodes with different wavelengths and output power options.
Product Features
Industrial 22mm Housing Design
The 520nm Green Laser Positioning Module adopts a robust industrial housing structure designed for equipment integration.
Advantages:
- Strong mechanical stability
- Excellent vibration resistance
- Suitable for factory environments
- Easy machine installation
- Reliable long-term operation

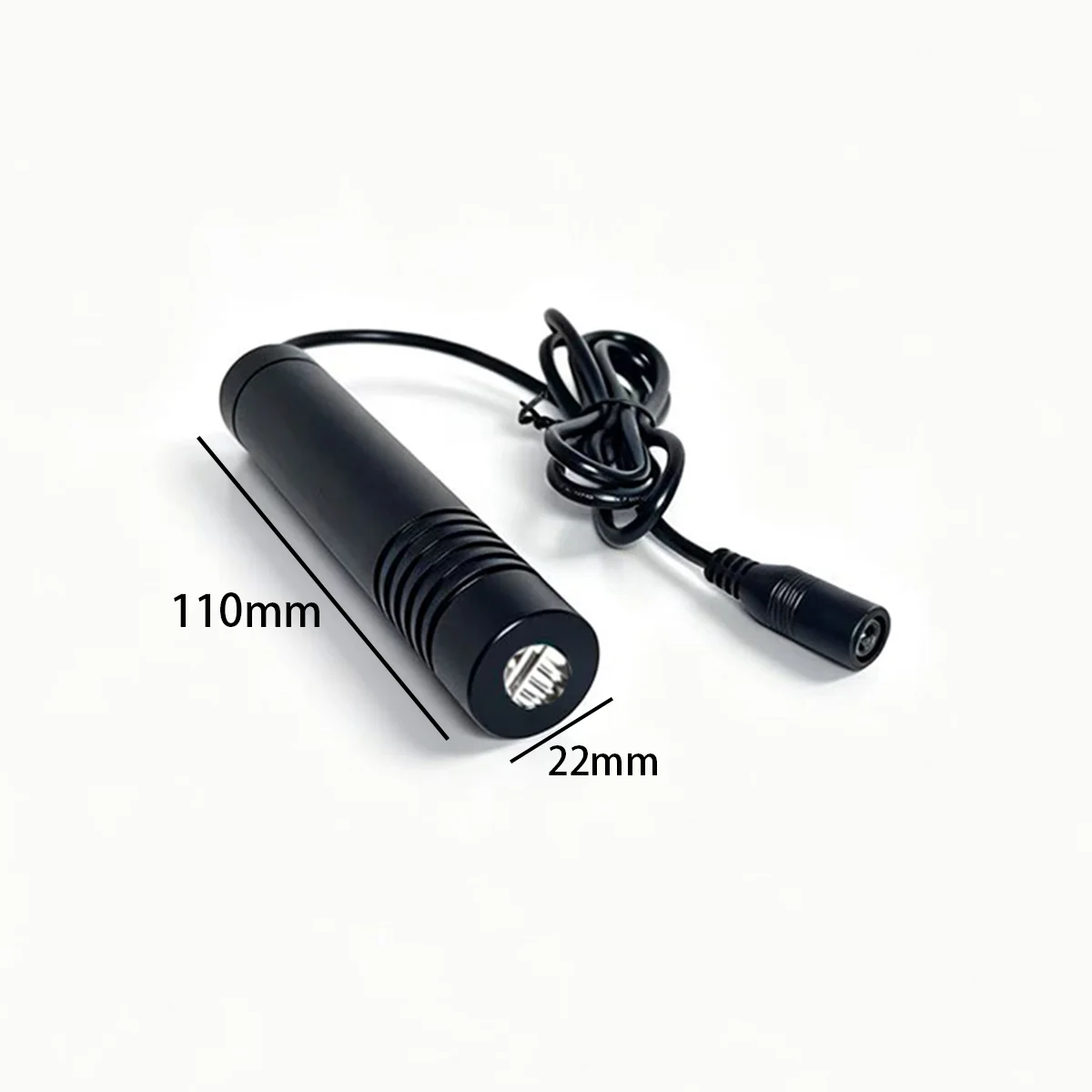

Technical dimension drawing of the 520nm Green Laser Positioning Module showing the 22mm diameter and 110mm length size.
Adjustable Brightness Green Laser Module
The built-in brightness adjustment function allows users to adjust laser intensity according to different working conditions.
Benefits:
- Clear laser visibility in various environments
- Improved positioning accuracy
- Suitable for indoor and industrial applications
- Flexible adjustment according to lighting conditions

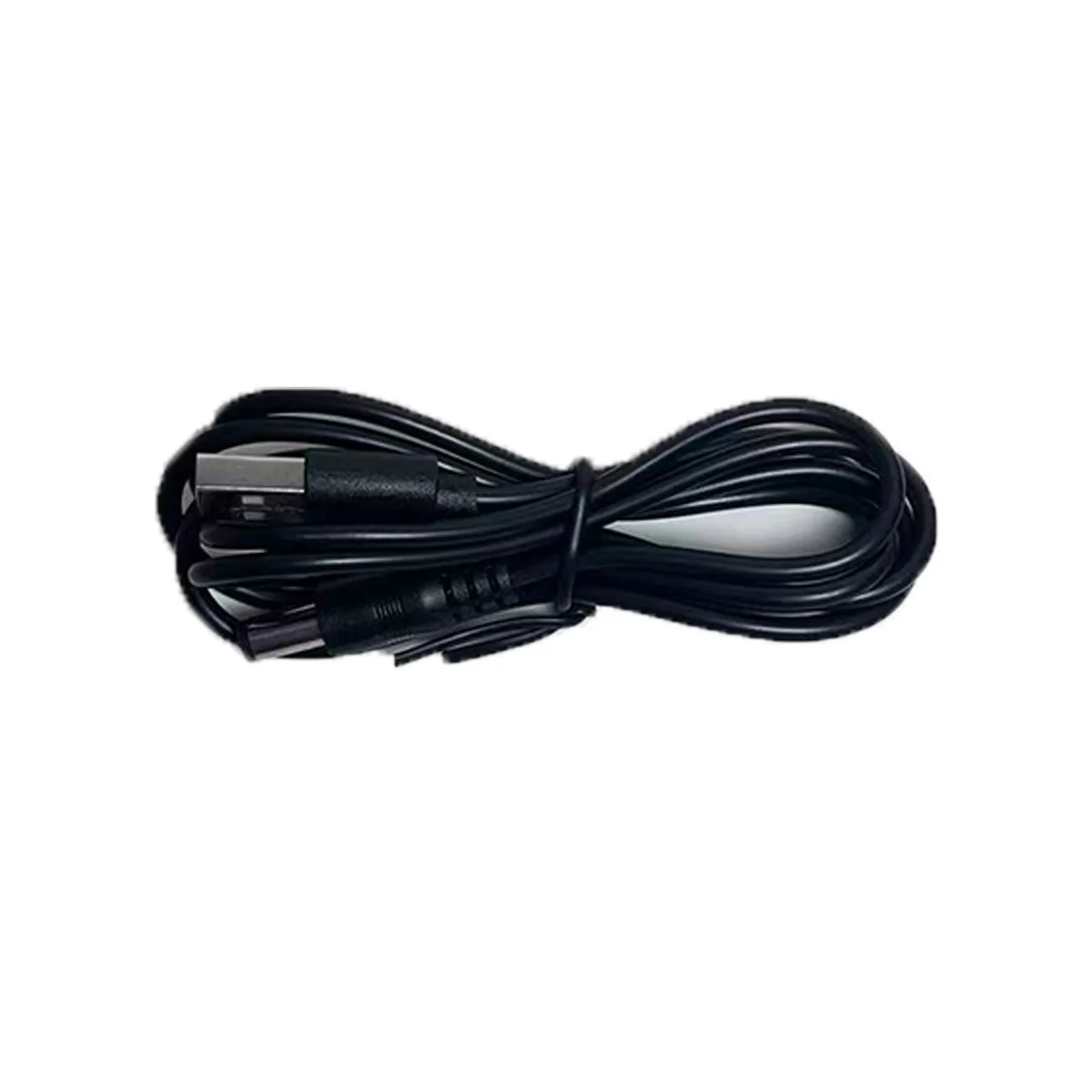

Brightness adjustment accessory for industrial laser modules. Easily control laser intensity to suit different working environments and improve positioning visibility.
For applications requiring adjustable optical focus, see our Adjustable Focus Laser Module.
360° Adjustable Mounting Bracket
For magnetic mounting applications, our 520nm Green Laser Module with Dual Magnetic Mount provides a convenient installation solution.
Bracket Features:
- Full 360° angle adjustment
- Easy laser direction positioning
- Secure mechanical locking
- Convenient machine integration

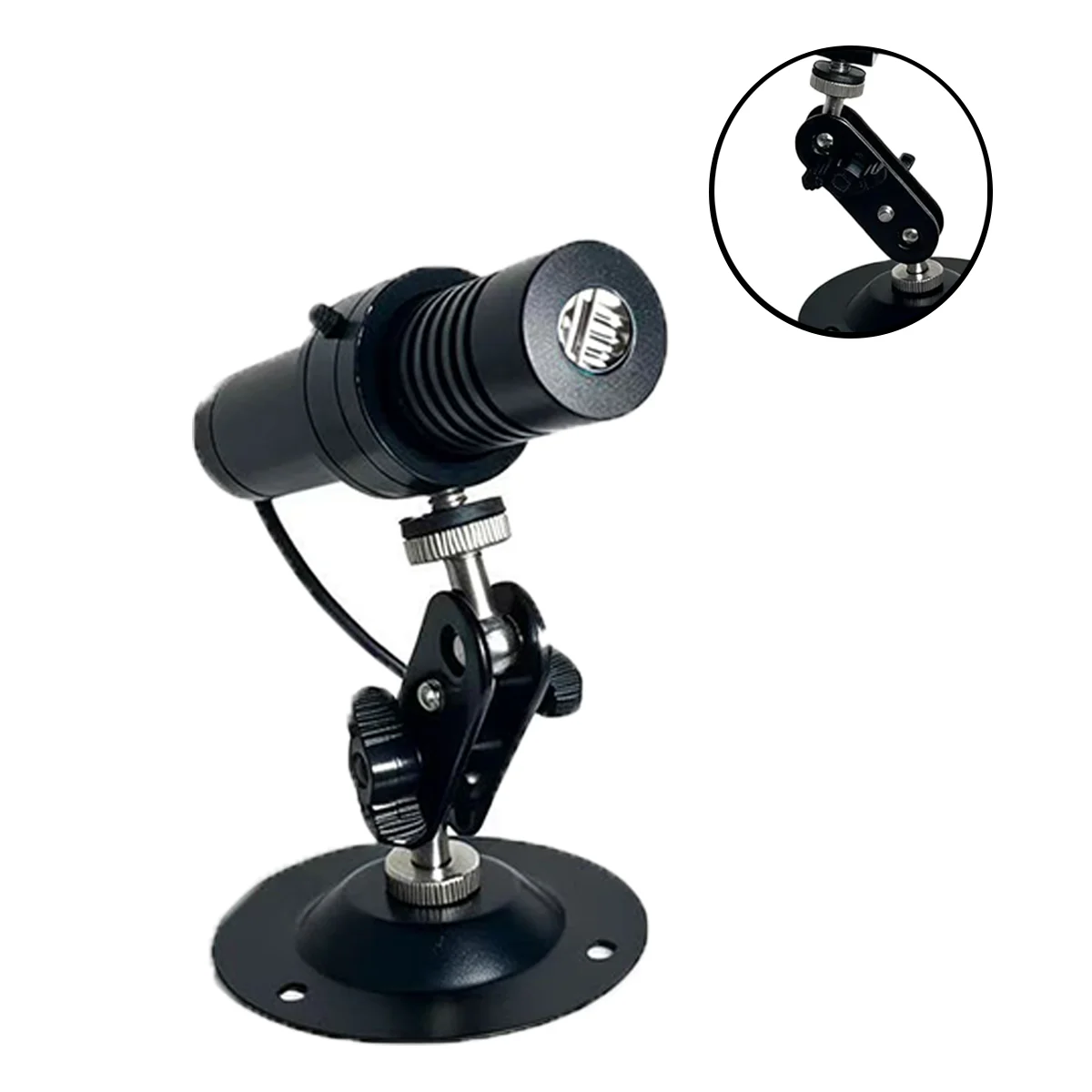

Detail view of the adjustable mounting bracket for flexible laser positioning and installation.
Three Beam Pattern Options
The 520nm Green Laser Positioning Module supports three projection patterns to meet different industrial requirements:
- Line Laser
- Cross Laser
- Dot Laser
Line Laser Module
The Line Laser Module projects a straight laser reference line for cutting guidance and workpiece alignment.
Applications:
- Fabric cutting machines
- Textile processing equipment
- Woodworking saws
- Sliding table saws
- Material positioning systems
- Production line marking
Advantages:
- Clear cutting reference line
- Fast visual positioning
- Improved cutting consistency
- Suitable for long-distance alignment
Cross Line Laser Module
The Cross Laser Module generates horizontal and vertical reference lines for precision positioning and equipment calibration.
Applications:
- CNC machine alignment
- Machine installation
- Industrial equipment calibration
- Fixture positioning
- Assembly line alignment
Advantages:
- Accurate center positioning reference
- Improved equipment installation accuracy
- Simplified machine adjustment
- Suitable for precision alignment
Dot Laser Module
The Dot Laser Module produces a concentrated laser spot for accurate point positioning and marking.
Applications:
- Precision positioning
- Industrial marking
- Equipment calibration
- Fixture assembly
- Measurement reference points
Advantages:
- Sharp laser spot
- Easy target recognition
- Accurate point positioning
Industrial Applications
The 520nm Green Laser Positioning Module works as a professional Green Laser Alignment System for industrial cutting, positioning, and machine alignment applications.
Fabric Cutting Laser Guide
Provides a clear visual reference line for:
- Garment cutting machines
- Textile cutting equipment
- Automatic fabric cutters
- Clothing production systems
Benefits:
- Improved cutting accuracy
- Reduced material waste
- Increased production efficiency
Woodworking Laser Guide
Suitable for:
- Sliding table saws
- Table saws
- Circular saws
- Wood cutting machines
- Workshop processing equipment
The laser guide helps operators achieve accurate cutting alignment and improve machining efficiency.
Stone Cutting Laser Alignment
Suitable for:
- Marble cutting
- Granite processing
- Tile cutting machines
- Stone fabrication equipment
Provides a stable laser reference during stone processing operations.
CNC Machine Alignment Laser
Compatible with:
- CNC routers
- CNC cutting machines
- Machining centers
- Industrial automation production lines
Provides stable visual positioning during machine setup, calibration, and operation.
Why Choose This 520nm Green Laser Positioning Module?
✔ High-visibility 520nm green laser source
✔ Professional Industrial Laser Positioning Module design
✔ Durable industrial housing structure
✔ Adjustable brightness control
✔ 360° adjustable mounting bracket
✔ Line / Cross / Dot beam options
✔ 1mW Class 2 safe laser output
✔ Stable Continuous Wave (CW) operation
✔ Ideal for CNC machine alignment and cutting guidance
✔ OEM & ODM customization available
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | 520nm Green Laser Positioning Module |
| Laser Color | Green |
| Wavelength | 520nm |
| Output Power | 1mW |
| Laser Class | Class 2 |
| Operating Mode | Continuous Wave (CW) |
| Beam Pattern | Line / Cross / Dot |
| Housing Diameter | 22mm |
| Operating Voltage | DC 5V |
| Focus Adjustment | Fixed Focus |
| Brightness Adjustment | Adjustable |
| Mounting Method | 360° Adjustable Bracket |
| Laser Source | 520nm Green Laser Diode |
| Applications | Cutting Alignment, CNC Positioning, Industrial Calibration |
OEM & ODM Customization Service
STSZ Laser provides professional OEM laser module manufacturing and customization solutions for industrial equipment manufacturers.
Customization options include:
- Laser wavelength
- Output power
- Beam pattern
- Beam angle
- Housing dimensions
- Cable length
- Connector type
- Mounting bracket
- Custom logo printing
- Packaging design
Our engineering team develops customized Industrial Laser Alignment Module solutions for automation companies and machine manufacturers.
Frequently Asked Questions
Q1: What is the 520nm Green Laser Positioning Module used for?
The 520nm Green Laser Positioning Module is designed for industrial cutting alignment, machine positioning, visual guidance, and equipment calibration.
It is widely used in:
- Fabric cutting machines
- Woodworking equipment
- Stone processing machinery
- CNC machines
- Industrial automation systems
Q2: What beam patterns are available?
The module supports:
- Line laser
- Cross laser
- Dot laser
Customers can select the suitable beam pattern according to their application requirements.
Q3: Is the focus adjustable?
No. This model uses a fixed-focus optical design optimized for industrial positioning applications.
Q4: Can the laser brightness be adjusted?
Yes. The adjustable brightness function improves laser visibility under different lighting environments.
Q5: Does this module support OEM customization?
Yes. STSZ Laser supports customization of:
- Wavelength
- Output power
- Beam pattern
- Housing
- Cable length
- Connector type
- Mounting structure
Q6: Can it be used on CNC machines?
Yes. This CNC Machine Alignment Laser is suitable for CNC positioning, machine calibration, and industrial visual guidance.
Q7: Can the mounting angle be adjusted?
Yes. The universal mounting bracket supports 360° rotation adjustment.
Related Products
- 650nm Red Laser Positioning Module
- 520nm Adjustable Focus Green Laser Module
- 650nm Adjustable Focus Red Laser Module
- 520nm Green Laser Module with Dual Magnetic Mount
- Industrial Semiconductor Laser Diodes
STSZ Laser — Improve Industrial Alignment Accuracy
The 520nm Green Laser Positioning Module provides a reliable laser alignment solution for industrial cutting, CNC machine positioning, and equipment calibration.
With high-visibility green laser output, adjustable brightness control, flexible mounting design, multiple beam options, and OEM customization capability, STSZ Laser helps equipment manufacturers improve production efficiency and achieve high-precision industrial positioning.
Contact STSZ Laser for product specifications, customized laser solutions, and bulk purchase quotations.
