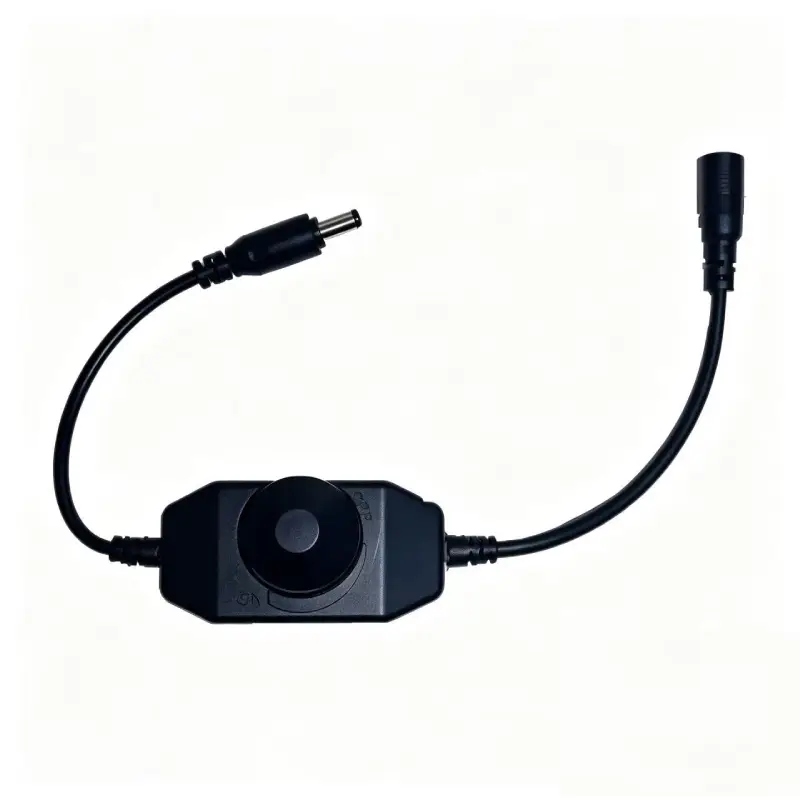

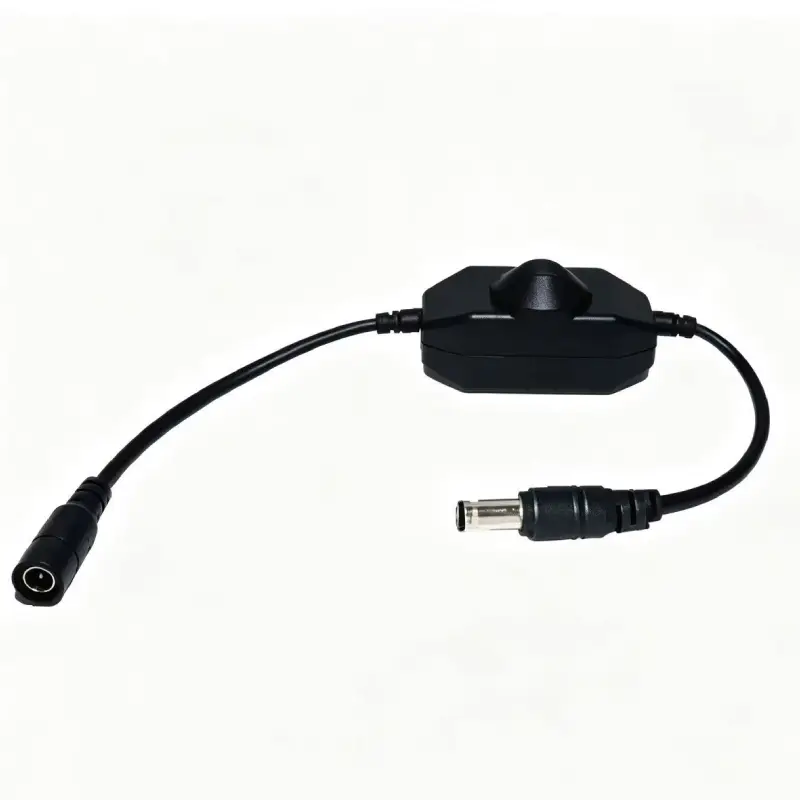

Laser Brightness Adjustment Accessory for Laser Modules

This laser brightness adjustment accessory is designed for STSZ Laser modules with a 5V DC connection. It adds manual brightness control to laser modules that originally have a fixed brightness level.

Instead of replacing the original laser module, this accessory can be connected directly into the laser power line, allowing the user to adjust laser brightness according to the actual working environment.

For more laser accessories, see our Laser Accessories category.

Continuous Brightness Adjustment

The main function of this accessory is continuous manual brightness adjustment.

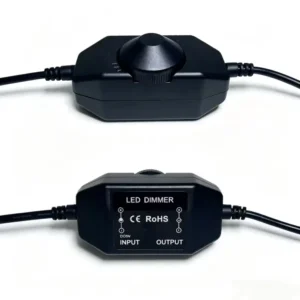

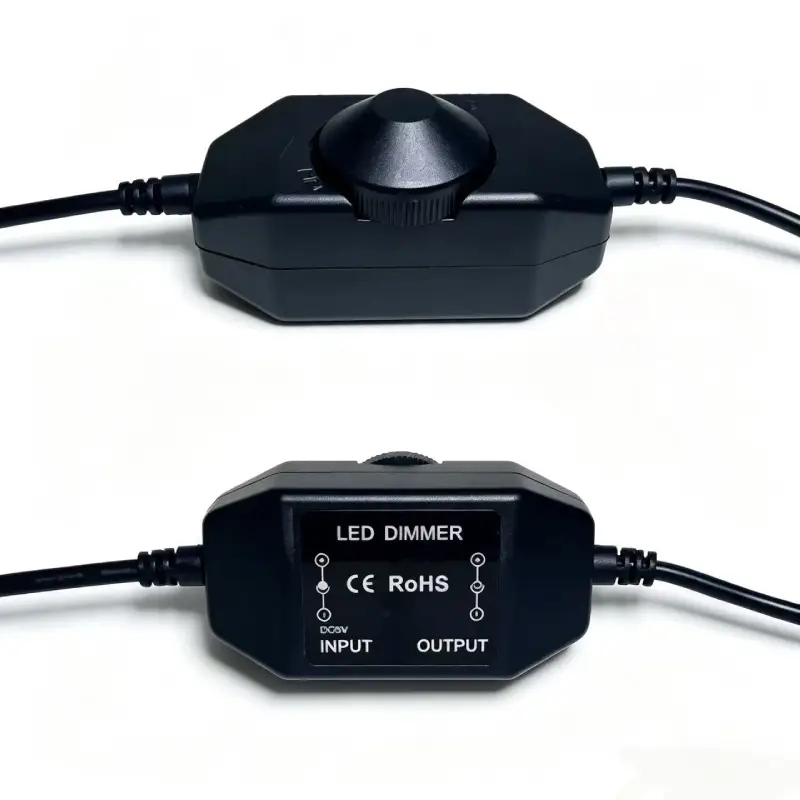

A rotary knob provides direct control over the connected laser module:

• Clockwise: Increase brightness
• Counterclockwise: Decrease brightness
• Adjustment: Continuous

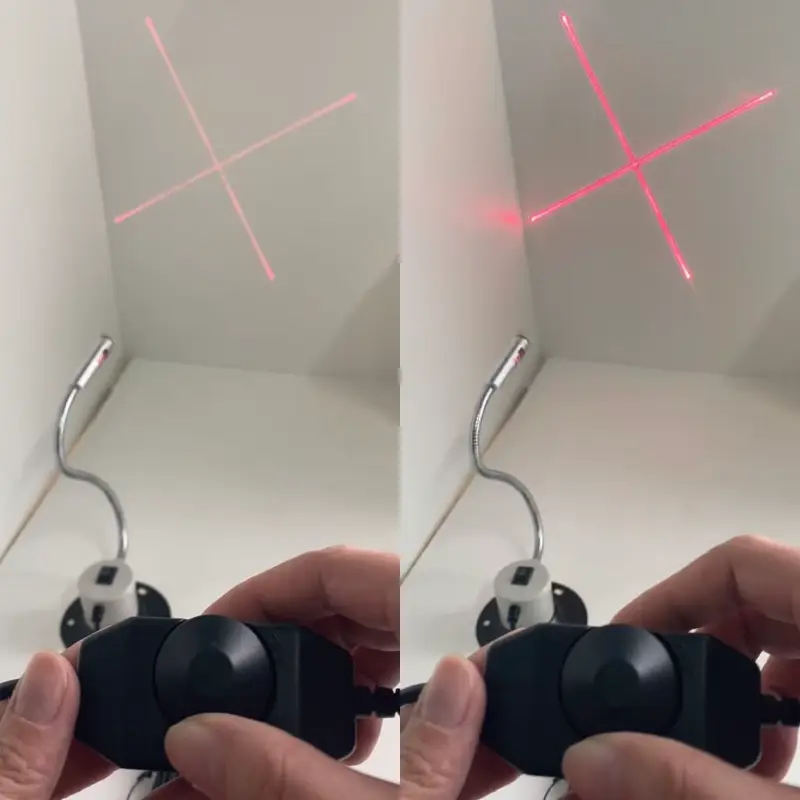

This allows the operator to fine-tune the visible laser output instead of being limited to the original fixed brightness level.

The rotary adjustment design is useful when the required laser visibility changes between different working conditions, materials, viewing distances, or surrounding lighting environments.

In-Line Connection for Easy Installation

This accessory is installed directly in the laser power line rather than being mounted onto the laser housing.

The connection arrangement is:

Power Supply → Brightness Adjustment Accessory → Laser Module

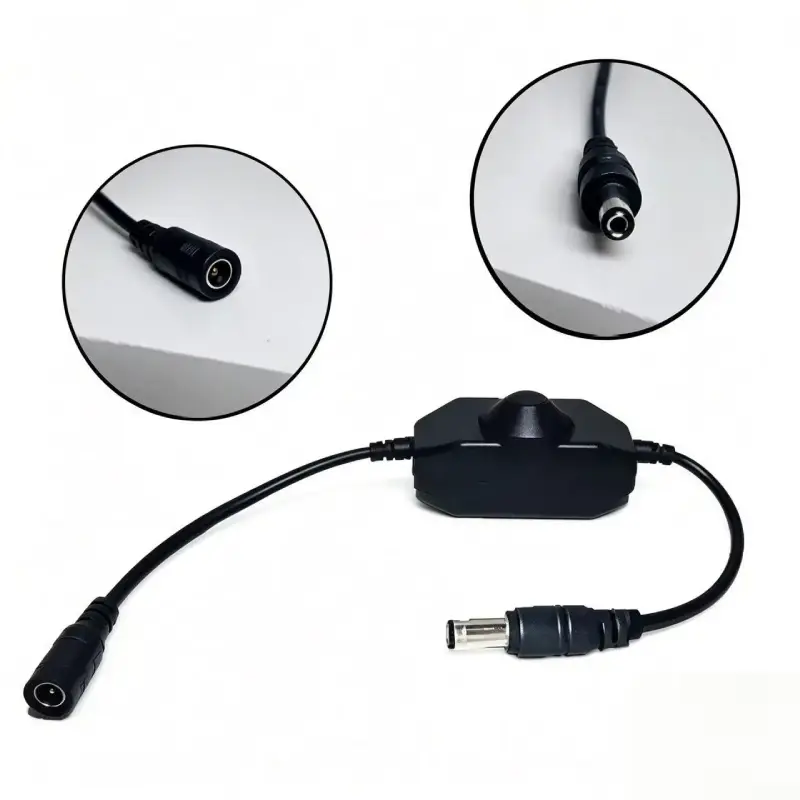

Simply connect the corresponding DC connectors between the power supply and compatible laser module. No modification to the laser module itself is required.

This makes the accessory suitable for upgrading an existing fixed-brightness laser setup when manual brightness adjustment is required.

Compatible with STSZ Laser Modules

The brightness adjustment accessory is designed for STSZ Laser 5V DC laser products with the corresponding DC connection.

It does not generate the laser beam itself. Instead, it works as an additional control component in the laser power connection to provide manual brightness adjustment.

If you are looking for laser modules for positioning and alignment applications, see our Laser Positioning Modules.

Why Add Brightness Control?

A laser module with fixed brightness may be suitable for one working environment but may require a different brightness level in another.

For example, the required laser visibility can change because of:

• Ambient lighting
• Working distance
• Material surface
• Material color
• Operator viewing conditions
• Machine operating environment

This accessory provides a simple way to adjust the brightness without replacing an existing compatible laser module.

Typical Applications

The accessory can be used with compatible STSZ Laser modules for:

• Machine alignment
• Laser positioning
• CNC equipment
• Cutting machine guidance
• Fabric cutting machines
• Wood cutting equipment
• Stone cutting equipment
• Industrial alignment systems
• OEM laser assemblies

Product Specifications

Specification	Details
Product Type	Laser Brightness Adjustment Accessory
Main Function	Continuous Brightness Adjustment
Adjustment Method	Rotary Knob
Clockwise	Increase Brightness
Counterclockwise	Decrease Brightness
Operating Voltage	5V DC
Connection	DC Connector
Installation	In-Line Connection
Compatibility	Compatible STSZ Laser 5V DC Products

A Simple Add-On for Fixed-Brightness Laser Modules

If your existing STSZ Laser module has a fixed brightness level, this accessory provides a convenient way to add manual brightness control.

Connect the accessory to the laser power line, turn the rotary knob, and set the brightness to the level required for your application.

Frequently Asked Questions

1.Can this accessory adjust the brightness of a laser module?

Yes. This accessory adds manual brightness adjustment to compatible STSZ Laser modules that have a fixed brightness level and a suitable 5V DC connection.

2.How do I adjust the laser brightness?

Turn the rotary knob clockwise to increase brightness and counterclockwise to decrease brightness. The adjustment is continuous.

3.Does the accessory replace the laser module?

No. It is an add-on accessory connected to the laser power line. The original laser module remains in place.

4.How is the brightness adjustment accessory connected?

It is connected in-line between the power supply and the compatible laser module:

Power Supply → Brightness Adjustment Accessory → Laser Module

5.What voltage does the accessory use?

The accessory is designed for compatible 5V DC STSZ Laser products.

6.Can I use this accessory with STSZ Laser modules?

Yes. It is designed for compatible STSZ Laser products using the corresponding 5V DC connection.

7.Can the brightness be adjusted continuously?

Yes. The rotary knob provides continuous brightness adjustment rather than fixed brightness levels.

8.Does the accessory generate the laser beam?

No. It does not generate laser light. Its function is to provide brightness adjustment for a compatible connected laser module.

9.What applications can use this accessory?

It can be used with compatible laser modules for machine alignment, laser positioning, CNC equipment, cutting machine guidance, fabric cutting, wood cutting, stone cutting, and OEM equipment.

10.Why use this accessory instead of replacing the laser module?

If the existing laser module already meets the application’s requirements but has a fixed brightness level, this accessory provides a way to add manual brightness adjustment without replacing the module.
