520nm Green Line Laser Module for Industrial Applications

Product Definition

Product Type: Green Laser Positioning Module
Wavelength: 520nm
Beam Type: Line Beam
Mounting: Dual Magnetic Base
Adjustment: 360° Adjustable Universal Bracket
Main Function: Positioning and Alignment
Main Applications: Wood Cutting, Stone Cutting, Fabric Cutting, CNC Machines, Industrial Equipment

The 520nm Green Line Laser Module is an industrial laser positioning module that projects a straight green laser line for machine alignment, material positioning, and cutting guidance.

It combines a 520nm green laser, straight line beam, dual magnetic mounting base, and 360° adjustable universal bracket in one positioning solution.

For more laser positioning solutions, see Laser Positioning Modules.

Key Features

1. 520nm Green Laser

The 520nm green laser provides a clearly visible reference for positioning and alignment applications.

Green laser light can provide better visual visibility than red laser light under many working conditions.

Actual visibility depends on ambient lighting, projection distance, surface color, and optical output.

2. Straight Line Beam

The module projects a continuous straight laser line for linear positioning and alignment.

Typical applications include:

• Material positioning
• Cutting alignment
• Machine alignment
• Edge positioning
• Linear reference

A line beam is particularly useful when the operator needs a continuous visual reference rather than a single laser point.

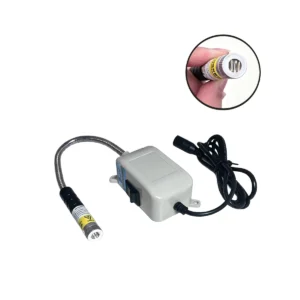

3. Dual Magnetic Mount

The integrated dual magnetic base allows quick installation on suitable metal surfaces.

The magnetic mounting design makes it easier to:

• Install the laser quickly
• Remove the laser when required
• Move the laser to another working position
• Reposition the laser when the machine setup changes
• Avoid permanent drilling for suitable mounting surfaces

This makes the module suitable for applications where the laser reference position may need to be changed.

4. 360° Adjustable Universal Bracket

The universal bracket allows the laser module to be rotated and adjusted toward different working directions.

The adjustable mounting structure provides flexibility when the laser needs to be installed at different positions or angles on a machine.

Main Applications

Wood Cutting

The green laser line provides a visible positioning reference for wood cutting and woodworking equipment.

It can help operators align the material with the required cutting position.

Application: Woodworking and wood cutting machines.

Stone Cutting

The laser line can be used as a visible reference for material positioning and alignment during stone cutting and processing.

Application: Stone cutting and stone processing equipment.

Fabric Cutting

The green laser line can be used on fabric cutting machines and cutting beds as a visible positioning reference.

It helps operators align fabric or other flexible materials along a defined straight reference line.

Application: Fabric cutting machines and textile equipment.

CNC Machines

The module can provide a visible laser reference for positioning, alignment, and cutting guidance on suitable CNC equipment.

Application: CNC machines and machining equipment.

Industrial Equipment

The module can be integrated into industrial machinery and automation equipment where a visible positioning or alignment reference is required.

Application: Industrial automation, machine alignment, and production equipment.

Product Advantages

Feature	Function	Application Value
520nm Green Laser	Projects green laser light	Visible positioning reference
Line Beam	Projects a straight laser line	Linear positioning and alignment
Dual Magnetic Base	Quick mounting on suitable metal surfaces	Easy installation and repositioning
360° Adjustable Bracket	Adjusts laser direction	Flexible installation
Compact Laser Module	Equipment integration	Suitable for different machines
OEM Customization	Customized according to requirements	Industrial OEM projects

Technical Specifications

Specification	Value
Product Type	Green Laser Positioning Module
Wavelength	520nm
Beam Type	Line
Optical Output	1mW
Operating Mode	CW
Laser Class	Class 2
Working Voltage	DC 5V
Mounting	Dual Magnetic Base
Bracket	360° Adjustable Universal Bracket
Main Function	Positioning and Alignment
Applications	Wood Cutting, Stone Cutting, Fabric Cutting, CNC
OEM	Available

* Specifications may vary according to the selected configuration. Please contact STSZ Laser to confirm the exact specifications before ordering.

Who Is This Product For?

The 520nm Green Line Laser Module is suitable for:

• Machine manufacturers
• CNC equipment manufacturers
• Woodworking equipment manufacturers
• Stone cutting equipment manufacturers
• Fabric cutting machine manufacturers
• Industrial automation companies
• Machine integrators
• Laser equipment distributors
• OEM customers

OEM Laser Module Customization

STSZ Laser provides OEM laser module customization for industrial equipment manufacturers, machine builders, distributors, and system integrators.

Customization may include:

• Wavelength
• Optical output
• Beam type
• Working voltage
• Cable length
• Connector
• Mounting method
• Bracket structure
• Housing dimensions
• Mechanical interface

For OEM projects, please provide:

Wavelength + Output Power + Voltage + Beam Type + Mounting Method + Dimensions + Application

Frequently Asked Questions

What is a 520nm Green Line Laser Module?

A 520nm Green Line Laser Module is a laser positioning device that projects a straight green laser line for positioning, alignment, and cutting guidance.

What is a 520nm green laser module used for?

It can be used for:

• Machine alignment
• Material positioning
• Cutting guidance
• Wood cutting
• Stone cutting
• Fabric cutting
• CNC equipment
• Industrial automation

Why use a 520nm green laser?

520nm green laser light can provide better visual visibility than red laser light under many working conditions.

Actual visibility depends on ambient lighting, projection distance, surface color, and optical output.

What is the advantage of the dual magnetic base?

The dual magnetic base allows quick installation and repositioning on suitable metal surfaces without requiring permanent drilling.

Can the laser module be moved?

Yes. The magnetic mounting design allows the module to be moved and repositioned when the working location changes.

Can the laser direction be adjusted?

Yes. The 360° adjustable universal bracket allows the laser direction to be adjusted according to the installation position.

Why use a line laser?

A line laser provides a continuous straight reference instead of a single point, making it suitable for linear positioning and cutting alignment.

Can it be used for fabric cutting machines?

Yes. The green laser line can be used as a visual positioning reference on fabric cutting machines and cutting beds.

Can it be used for wood cutting?

Yes. It can provide a visible positioning and cutting alignment reference for woodworking equipment.

Can it be used for stone cutting?

Yes. It can be integrated into suitable stone cutting equipment for positioning and alignment applications.

Do you provide OEM customization?

Yes. STSZ Laser provides OEM laser module customization for equipment manufacturers, machine integrators, distributors, and industrial customers.

Related Products

1. Adjustable Focus Green Laser Module

Adjustable Focus Green Laser Module

A green laser module designed for applications where adjustable laser focus is required.

2. Industrial Semiconductor Laser Diodes

Industrial Semiconductor Laser Diodes

Semiconductor laser sources for laser module manufacturing, optical systems, and OEM applications.

Product Summary

Product: 520nm Green Line Laser Module

Laser Color: Green

Wavelength: 520nm

Beam: Straight Line

Mounting: Dual Magnetic Base

Bracket: 360° Adjustable Universal Bracket

Main Function: Positioning and Alignment

Main Applications: Wood Cutting, Stone Cutting, Fabric Cutting, CNC, Industrial Equipment

Customization: OEM Available
